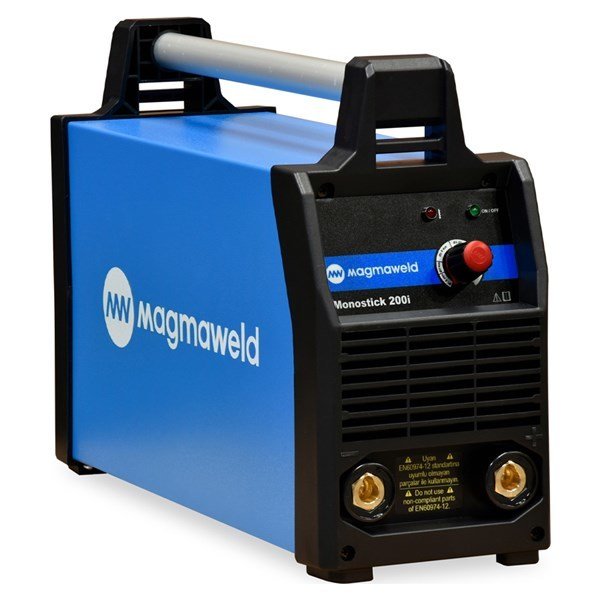

Magmaweld Monostick 200i Welding Machine

Magmaweld Inverter Welding Machine 200İ

Product features:

It works with 1 Phase 230V-50/60 Hz mains voltage and Generators. Telores voltage fluctuations up to 15%.
Provides excellent welding characteristics with Rutile and Basic electrodes.
Welding current starts from 10 amps, and friction TIG welding gives good results even on thin materials.
The current adjustment scale is arranged according to electrode diameters.
It is designed especially for outdoor use and has IP 23S Protection class.
With its lightweight, easily portable yet robust design, it withstands harsh working conditions for a long time. Thanks to its wide base, it does not tip over easily.
It offers welding without loss of performance with long welding cables and electrical cables.
It is cooled by a fan and has protection against overheating.
Electrode - Earth clamp and Electric cable are offered as standard.
According to the EN60974 standard, it is classified as Class A. It is suitable for use in places with local distribution voltage, outside residential areas.

Technicial Specifications:

Mains Voltage (1 Phase): 230 V

Power Drawn from the Grid: 9.7 (14%) kVA

Input Current: 42.1 (14%) A

Welding Current Setting Range: 10 - 200 A

Recommended Mains Fuse: 32 A

Rated Welding Current: 200 (14%) A

Open Circuit Voltage: 65 V

Electrode Diameter: 1.60 - 4.00 mm

Dimensions (lxwxh): 467 x 160 x 312 mm

Weight: 10.5 Kg

Protection Class: IP23S

Package Included:

ELECTRODE CLIPS and CABLE: 16mm2/3mt (35 sockets) Standard
EARTH CLAMP and CABLE: 16mm2/3mt (35 sockets) Standard
